To use this diagram, you must be competent and have had the appropriate training in accordance with the standards for central heating systems and boiler fault finding, including wiring for heating systems as outlined in Part L of the Building Regulations and other relevant codes of practice.
Understanding S Plan Heating Systems: Installation, Maintenance, and Troubleshooting
Introduction
Welcome to EPHG Limited's comprehensive guide on the S Plan Heating System. Designed for both professionals and DIY enthusiasts, this article will delve into the installation, maintenance, and troubleshooting of S Plan systems, ensuring your central heating operates at peak efficiency.
What is the S Plan Heating System?
The S Plan is a configuration used in central heating systems known for its independent control of heating and hot water circuits through two separate valves. This setup ensures optimal energy use by allowing you to control heating and hot water separately. Here's what you need to know:

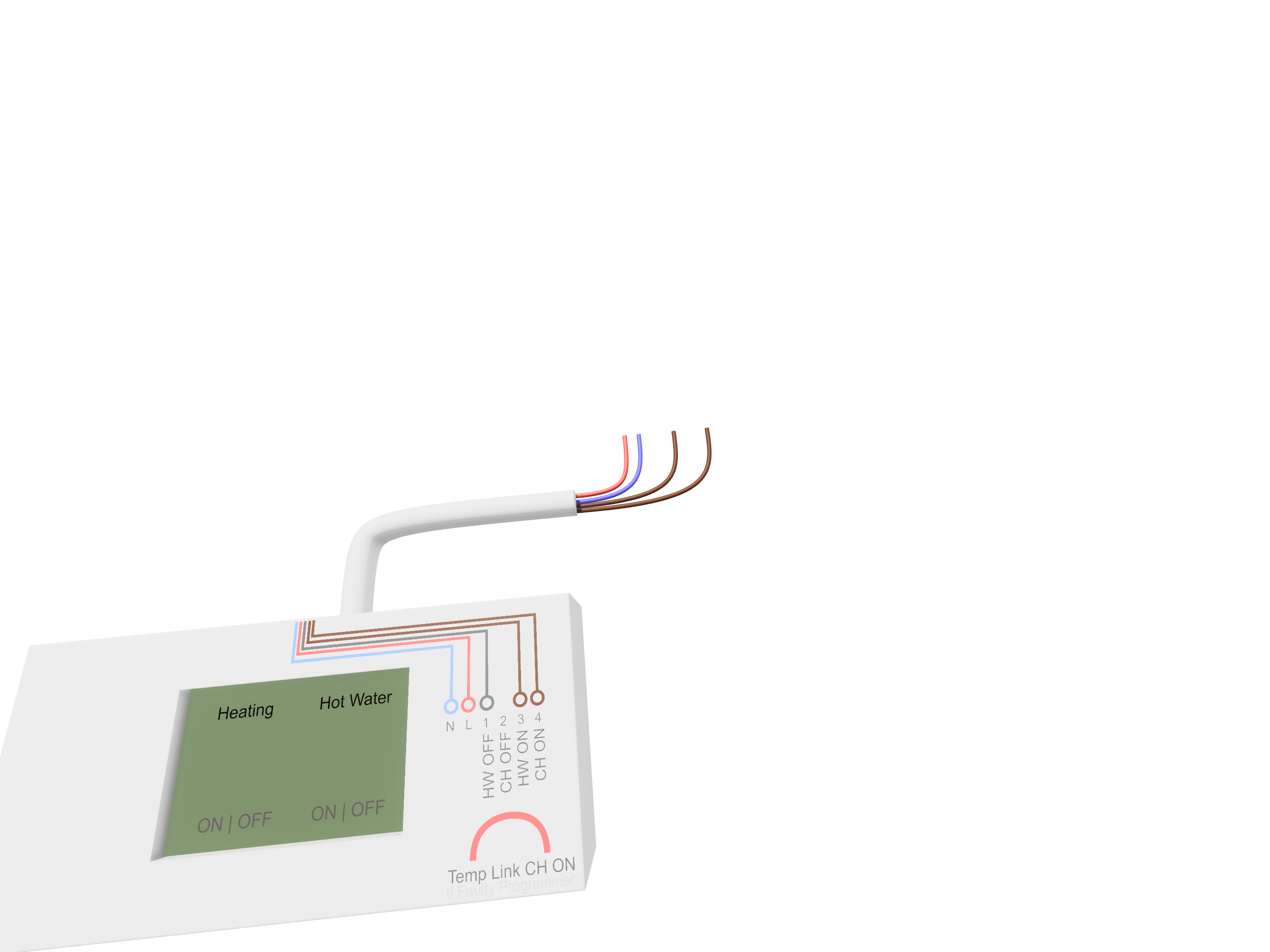

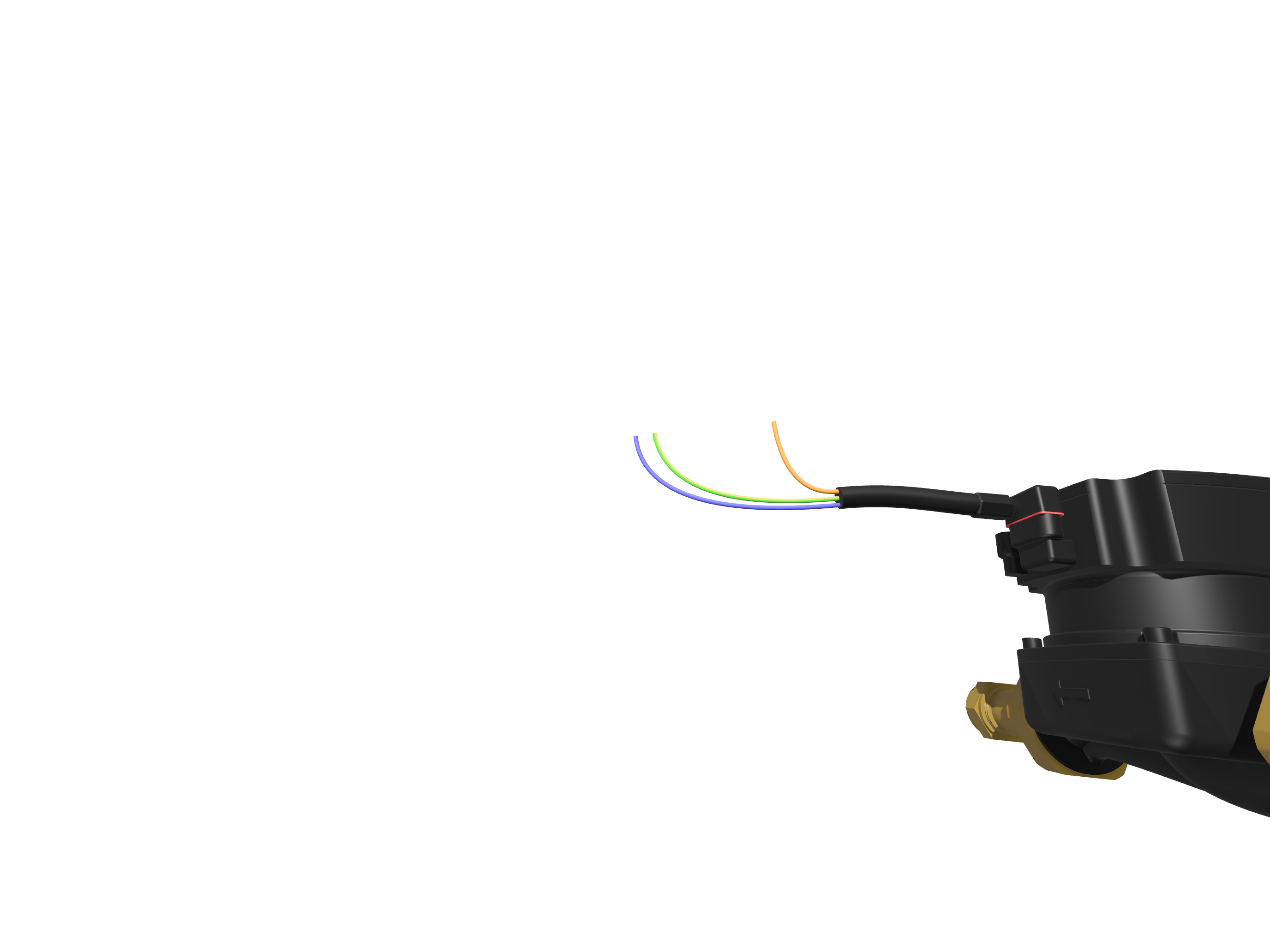

- Key Components: Includes a programmer, room thermostat, cylinder thermostat, and two 2-way valves for central heating (CH) and hot water (HW).
- Benefits: Enhanced control over your heating needs, improved energy efficiency, and easier fault detection.
Installation of an S Plan System
Preparation for Installation
- Training and Competence: Ensure you have the appropriate training as per Part L of the Building Regulations. This system requires understanding of wiring and control mechanisms.
- System Layout: Use our interactive diagram to familiarize yourself with the layout. Each component must be correctly placed for optimal performance.
Steps for Installation
- Positioning Components: Place the programmer, thermostats, and valves in strategic locations for maximum effectiveness.
- Wiring: Follow the wiring diagrams provided, ensuring all connections adhere to electrical standards for safety and efficiency.
- Testing: After installation, test each component to confirm they interact correctly with the system.
Maintenance Tips for S Plan Systems
- Regular Checks: Inspect wiring, thermostat settings, and valve operations annually or as recommended by the manufacturer.
- Cleaning: Keep the valves and sensors clean to prevent blockages or incorrect readings.
- Software Updates: If your system uses smart controls, ensure the software is up-to-date for the best performance.
Troubleshooting Common Issues
No Heating or Hot Water
- Check the switch spur and ensure it's in the 'on' position.
- Verify the programmer's settings for both heating and hot water.
Uneven Heating
- Ensure the room thermostat is correctly placed and functioning.
- Check if the 2-way valve for central heating is operating as expected.
Boiler Issues

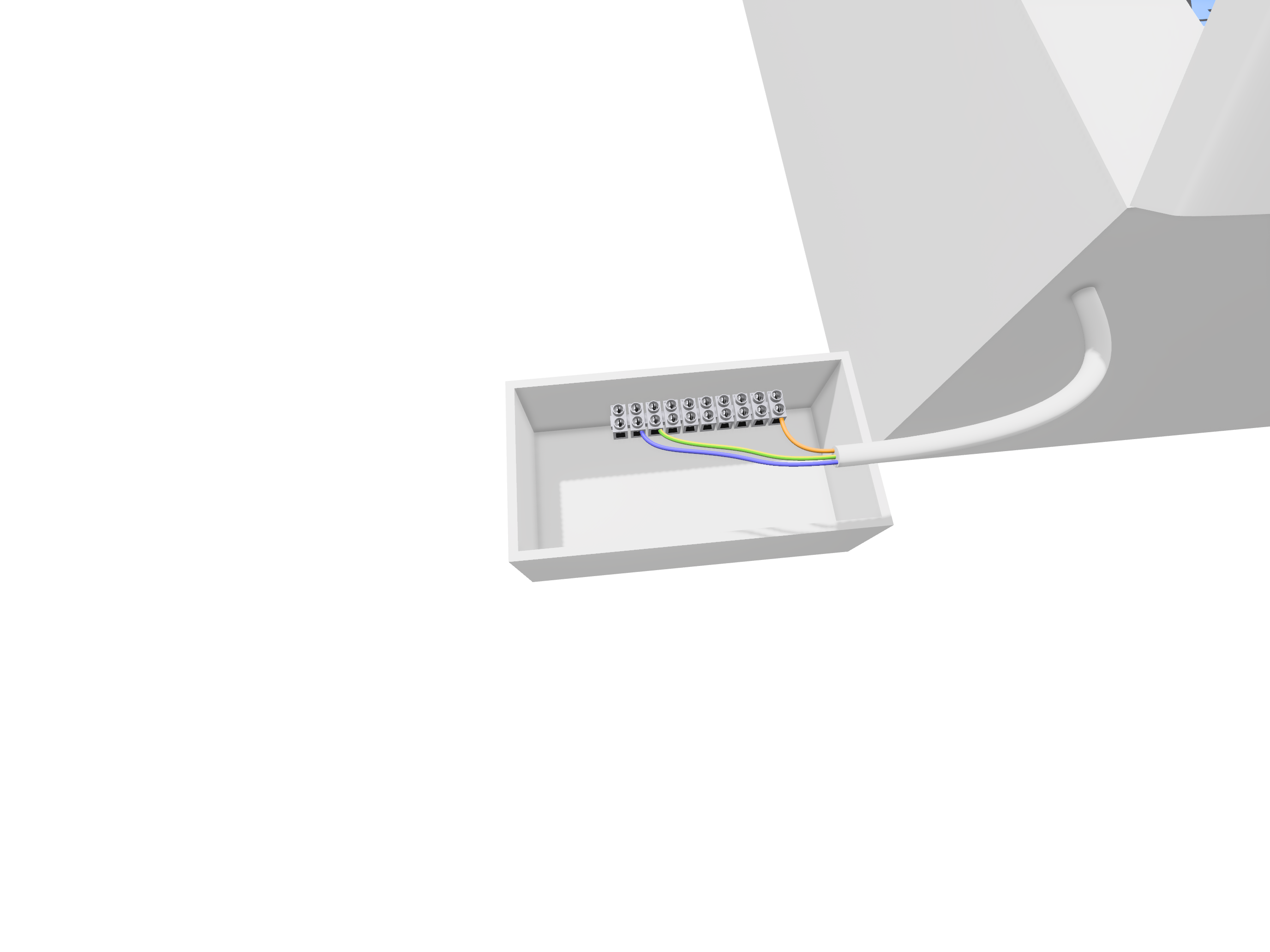

- If the boiler doesn't activate, check the connection to the 2-way valve and the integrity of the wiring.
Enhancing Your S Plan Experience
- Switch to Y Plan: If you're curious about other configurations, you can switch to the Y Plan, which uses a 3-way valve for combined heating and hot water control.
- Interactive Learning: Use our interactive buttons to toggle different components of the system, helping you understand how each part contributes to the overall functionality.
Conclusion
The S Plan heating system offers flexibility and efficiency for central heating control. By understanding installation, maintaining the system, and knowing how to troubleshoot, you can ensure your home remains warm and your hot water supply is reliable. Visit EPHG Limited for more insights or switch to our Y Plan page for another heating configuration option.
